A single LAN cable can be used to connect to the tip of the robot arm.
Ring illumination, and trigger distributor configured in one illumination
Can be used with PoE power supply (PoE, PoE+ compatible)
Power can be supplied from the illumination to the camera, and the illumination can be synchronized with the camera
White, red, and blue light-emitting colors are available.
1CH specification
| Model |
Input Voltage |
Color |
External dimensions
(long side/short side/height/ID) |
| IRLMAR-80 |
PoE power feed：DC48V
(DC37—57V) |
   |
115mm/90mm/29mm/φ36mm |
| IRLMAR-110 |
PoE power feed：DC48V
(DC37—57V) |
|
145mm/111mm/29mm/φ66mm |
8CH split specification
| Model |
Input Voltage |
Color |
External dimensions
(long side/short side/height/ID) |
| IRLMAR-80_-8ch |
PoE power feed：DC48V
(DC37—57V) |
|
115mm/90mm/29mm/φ36mm |
| IRLMAR-110_-8ch |
PoE power feed：DC48V
(DC37—57V) |
|
145mm/111mm/29mm/φ66mm |

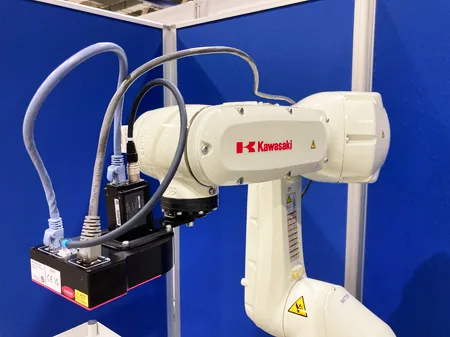

A single LAN cable can be used to connect to the tip of the robot arm.
For general connections
For general connections, many dedicated cables are required to connect to cameras and other equipment, and wiring is often complicated.
・LAN cable for transferring image data from the camera to a PC.
・Connection cable to feed power from the controller to the illumination.
・I/O cable that sends I/O signals from the PC through the controller.
For IRLMAR
With IRKMAR, data and signals can be transmitted, received, and powered with a single LAN cable via PoE Injector.
IRLMAR and the camera can be wired/trigger-synchronized in close proximity, and only one LAN cable is required for wiring when installed on the end of a robot arm, making wiring simple and lightweight.
Example of image synthesis
By combining 8 images captured using 8CH split specification lighting, images such as [Average Brightness image], [Halation removal image], [Regular reflectance image], [Surface curvature image], [Albedo image], and [Surface height image] can be generated, and image processing can be performed with the best combined image for the desired inspection content.
Examples of Use
 |
|
ROBOTLIGHT<IRLMAR Series> is listed as a certified K-AddOn product and can be seamlessly integrated with industrial robots from Kawasaki Robotics.
|
| |
|
K-AddOn Products Website (Japanese)
|
 |
| |
|
K-AddOn products are officially certified devices that have been tested for compatibility with Kawasaki Robotics’ systems, ensuring simple and reliable connectivity.
This certification significantly reduces the time needed for device connection setup during robot deployment.
|
| |
| Kawasaki Robotics Website: |
